Light Sensitive Voltage Divider





The output voltage is given by :

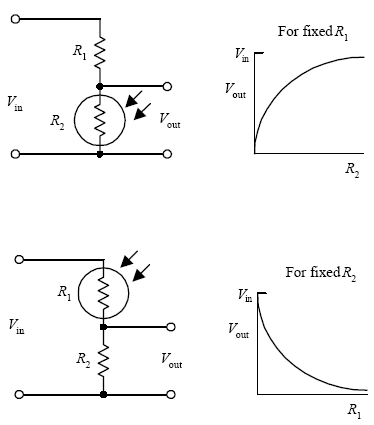

As the intensity of light increases, the resistance of the photoresistor decreases, so Vout in the top circuit gets smaller as more light hits it, whereas Vout in the lower circuit gets larger.
